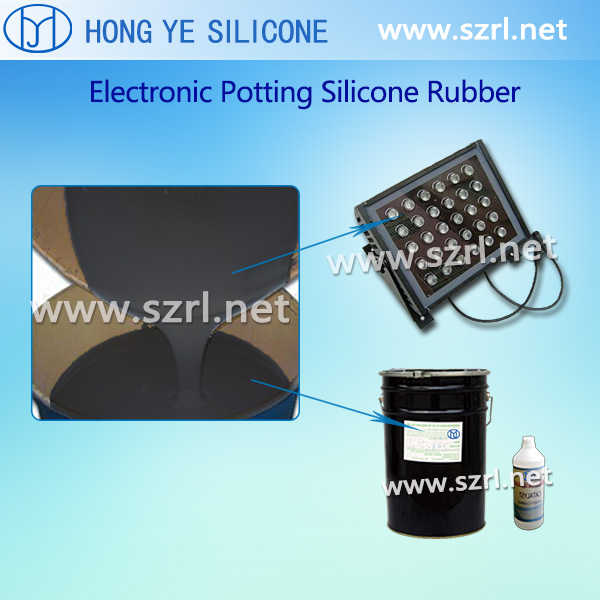

Electrical insulation silicone gel

Product No:HY-2 HY-90 HY-93 series
Brand:HONG YE JIE
Product Usage:Electrical insulation silicone gel includes condensation cure silicone potting compound and addition cure silicone potting compound both of them are two parts liquid silicone gel with the characteristics of low viscosity easy pouring operation and good bonding feature. It can be cured completely at room temperature.The safety of potting compound silicone can reach the EU-ROHS requirements fully.

ELECTRICAL INSULATION SILICONE GEL CHARACTERISTICS
        Electrical insulation silicone gel includes condensation cure silicone potting compound and addition cure silicone potting compound, both of them are two parts liquid silicone gel with the  characteristics of low viscosity, easy pouring operation, and good bonding feature. It can be cured completely at room temperature.The safety of potting compound silicone can reach the EU-ROHS requirements fully.


ELECTRICAL INSULATION SILICONE GEL APPLICATION
• Applying for the surface of PC(Poly-carbonate), PP, ABS, PVC, metal, etc

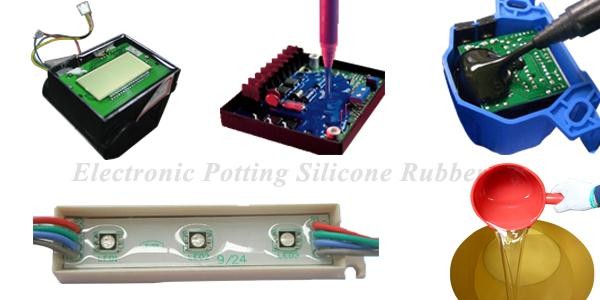

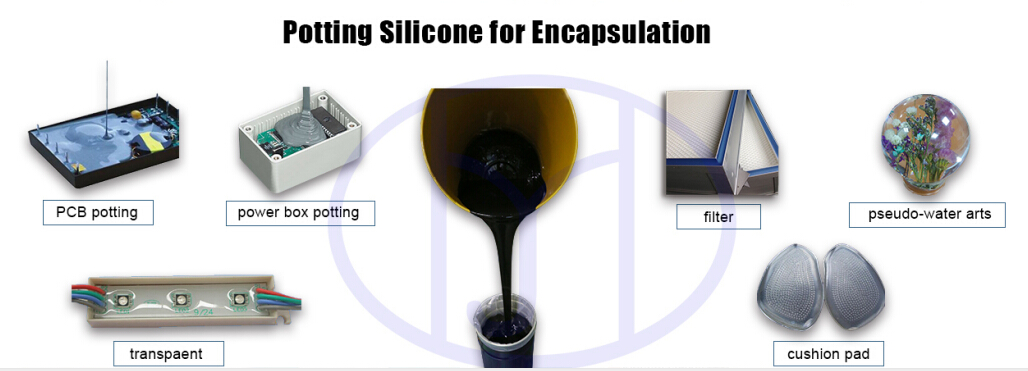

• Potting for Protection of general electronic module

• Insulation, waterproof and bonding of electronics parts

• Filling for LED, LCD electronic display, circuit board

• Outdoor protection for LED screen.



ELECTRICAL INSULATION SILICONE GEL NOTICE
1). All data of this product above base on 25°C with 55% humidity conditions. We don't guarantee a same date if testing under different conditions, or when data was regenerated.

2). Bubble release if necessary & Deaeration the mixture under 0.08 MPa for 3 Minutes.


ELECTRICAL INSULATION SILICONE GEL PACKAGE

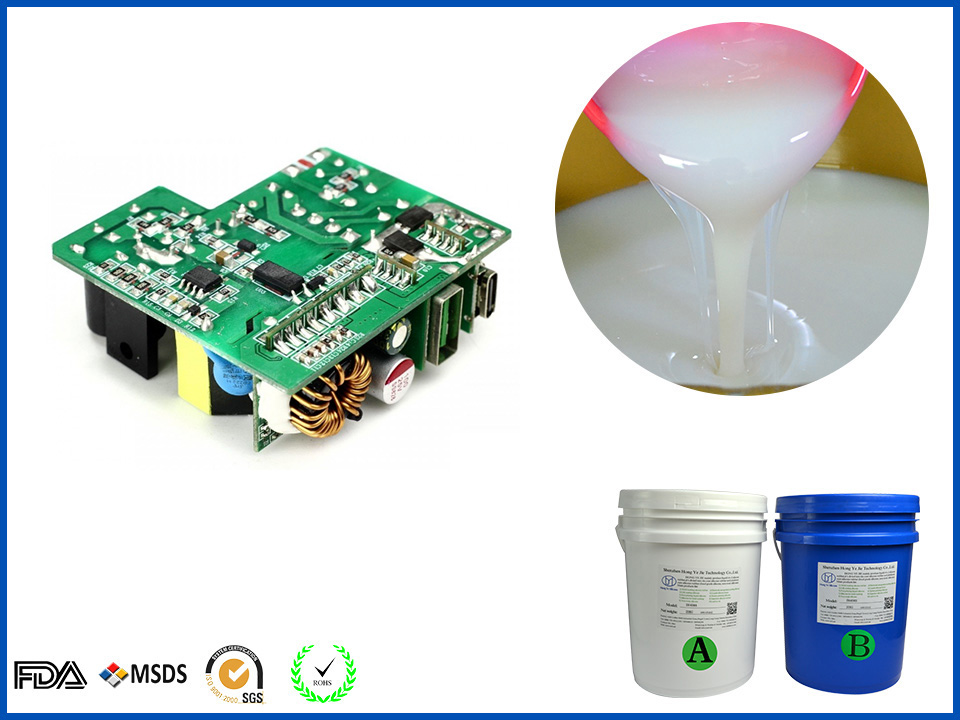

Tin cure silicone gel: 22kg/set (Part A 20kg + Part B 2kg)
Platinum cure silicone gel: 40kg/set
(Part A 20kg + Part B 20kg)


ELECTRICAL INSULATION SILICONE GEL SHELF LIFE AND TRANSPORTATION
1).Twelve(12) months when stored at 24℃ in original unopened packages.

2).This kind of product is non-dangerous product , it can be transported as general chemicals. 3).Products exceed the storage life should be confirmed normal before using.



ELECTRICAL INSULATION SILICONE GEL TECHNICAL GUIDELINES
1).Pls put part A and B in separate container and stir evenly before mixing the two parts together.

2).Mix A and B according right mixing ratio.

3).Bubble release if necessary , Deaeration the mixture under 0.08 MPa for 3 minutes.

4).It is cured at room temperature, so pls put it under room temperature after pouring.
It comes to next process when basically cured, and it takes about 24 hours for completely cured.
